Appliance para FIREWALL / Router WEA-B75A6L

Mini PC WEA-B75A6L

- Intel® B75 (Celeron/Pentium/i3/i5/i7)
- support 16GB memory
- 6 x Intel® 2 x SFP
- support M-SATA/WIFI,SIM,CF




Mini PC WEA-B75A6L
Mini PC WEA-B75A6L

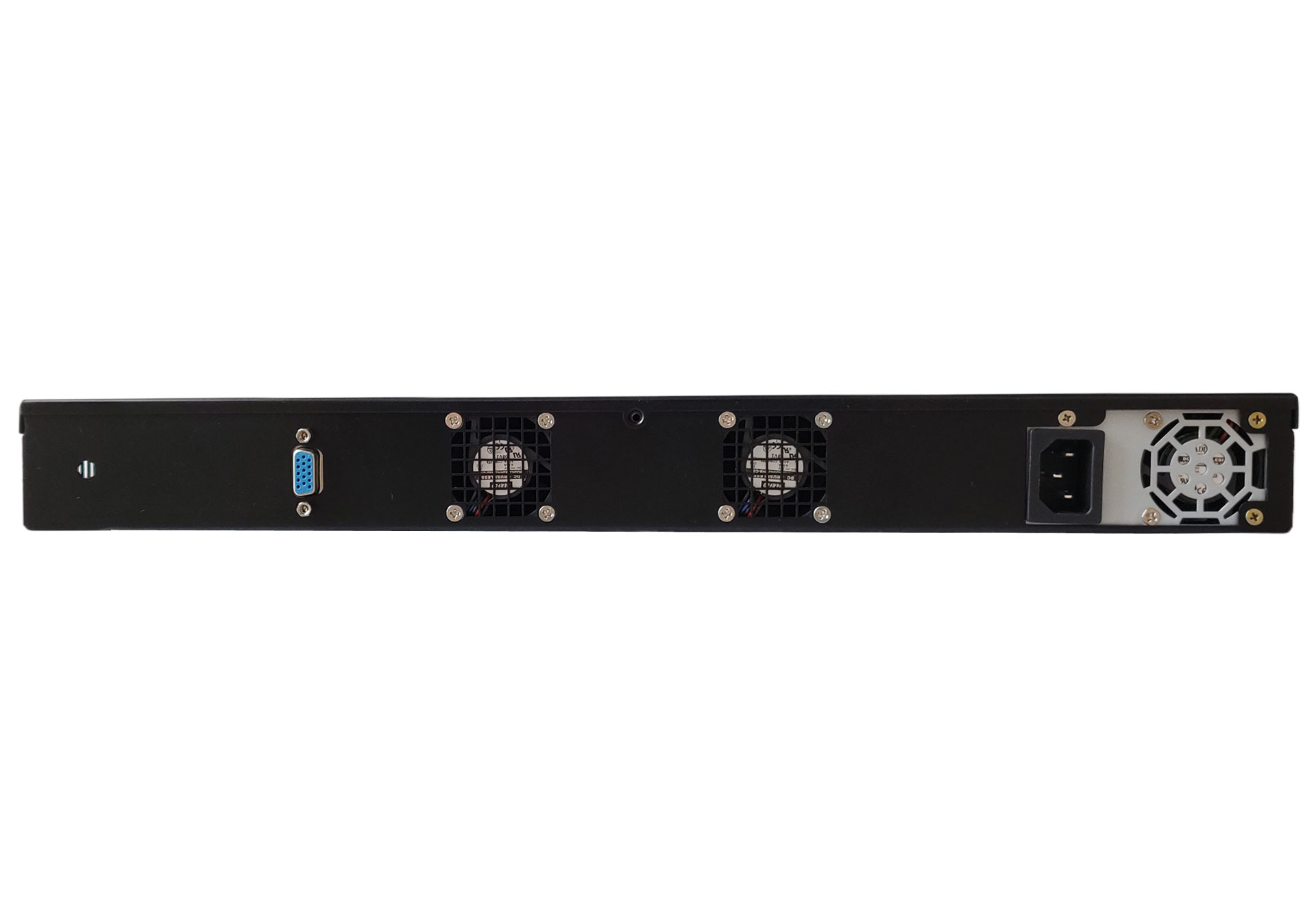

Appliance para Firewall, Gabinete de 1U Rackmount WEA-B75A6L placa mãe Intel Celeron/Pentium/i3/i5/i7, HD 500 Gb Sata 2,5" ou SSD MSata de 30 Gb, Memória 4 Gb DDR3 1333 Mhz.

Especificações:

CPU Support Intel Sandybridge/IvyBridge 32nm/22nm LGA1155
Chipset Intel B75
BIOS AMI 32M BIOS
Display Chip Intel CPU inner built display core
Display output Built in VGA pin
Memory 2 x SO-DIMM,DDR3 1066\1333\1600MHz Memory,support Maximum 16GB
LAN 6 x Onboard Intel i350 chip 6*Intel 82574 1000M
Storage
  • 3 x SATA II
  • 1 x SATA III
Expansion Slot
  • 2 x MINI-PCIE (for M-SATA/WIFI)
  • 1 x SIM
  • 1 x CF
USB 6 x USB 2.0 (4 x USB 2.0 need expand)
COM 2 x COM (1 x RJ45 to COM rear)
Rear I/O
  • 2 x USB 2.0
  • 6 x RJ-45 GLAN
  • 2 x SFP
  • 1 x RJ-45 to COM
  • 1 x PWR
  • 1 x RESET
  • 1 x LED
Inner I/O pin
  • 1 x 4pin ATX
  • 1 x 24pin ATX
  • 1 x IDE-PWR
  • 2 x USB 2.0 pin (can expand 4 USB interface)
  • 1 x 12PIN VGA pin
  • 1 x LPT pin
  • 1 x GPIO pin
  • 1 x PS/2 pin
  • 1 x COM
  • 1 x F-PANEL pin
  • 1-6 LAN-LED pin
  • 1 x CLR_CMOS
  • 1 x SATA-PWR pin
  • 2 x SYS-FAN pin
  • 1 x CPU-FAN pin
  • 1 x DEBUG-CON
Power Supply ATX 24+4 pin
Radiating System CPU radiator and fan
Working Environment -15~60; 0% ~ 95%
Form Factor 230X230MM
